AOI Underwater Housing Sony A7CII & A7CR UH-A7CII

AOI UH-A7CII Underwater Housing for SONY ILCE-7CII & 7CR with Built-in Vacuum System and AX Port

Product Details

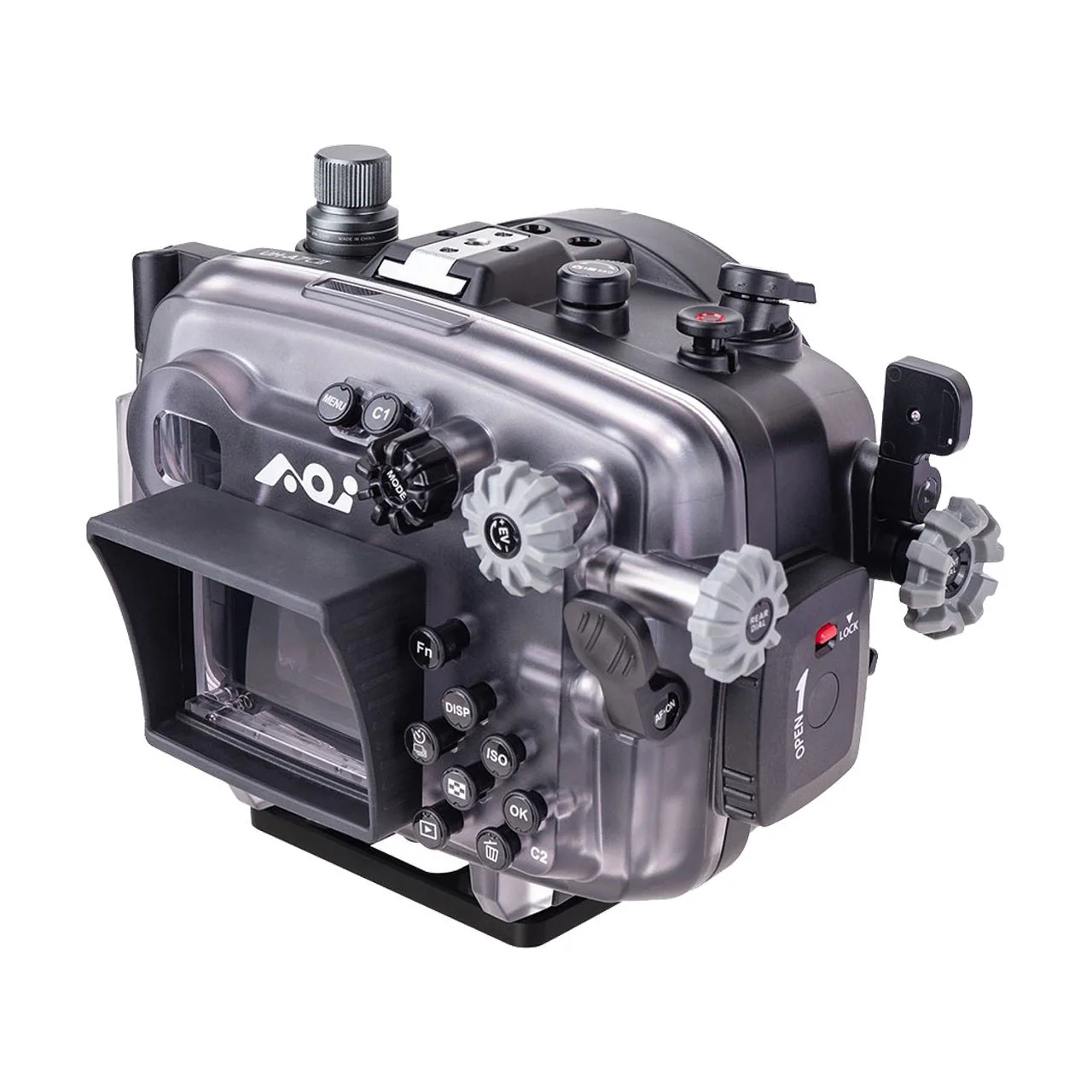

The AOI UH-A7CII is a high-quality underwater housing designed specifically for the SONY ILCE-7CII and ILCE-7CR full-frame mirrorless cameras. Engineered for underwater photographers who demand both performance and protection, this housing is ideal for scuba diving, snorkelling, and other aquatic adventures.

Key Features

• Depth Rating: 60 meters
• Lens Port System: AX Port System
• Flash Control: Supports SONY TTL (Auto HSS) and Manual Flash
• Water Leakage Protection: Built-in Vacuum Analyzation and Wet Detection System (VWS)
• Power Source: Built-in Rechargeable Lithium Polymer Battery (3.7V 110mAh)

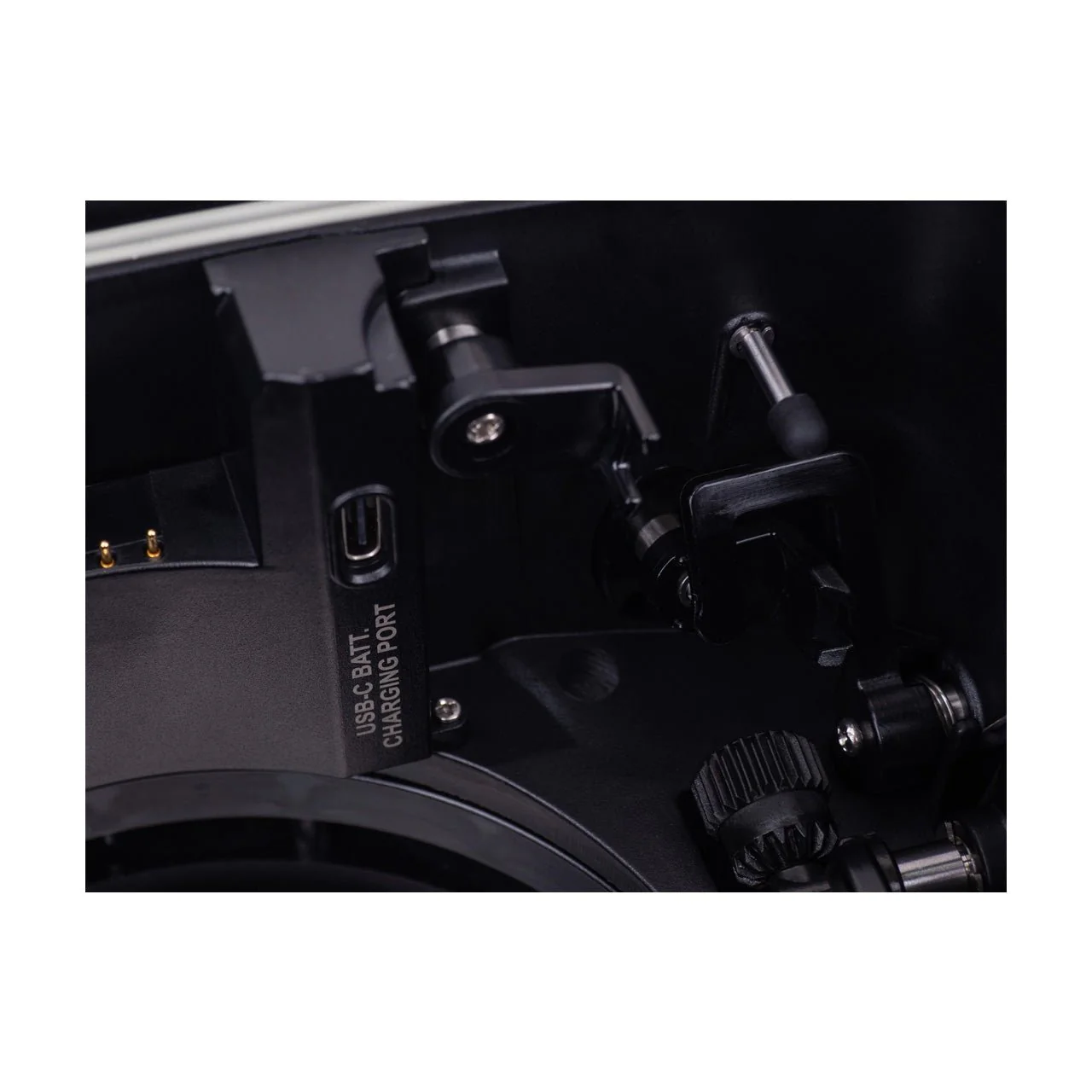

• Battery Charging: USB Charging (DC5V, 0.1A, USB charger not included)
• Battery Operation Time: Approx. 2 days (based on 3 dives/day and 1 hour/dive)
• Low Power Mode: Vacuum Circuit & LED will mimic camera's sleep mode.
• Sleep Mode: Vacuum Circuit & LED will switch itself off if camera is not connected or if the system is unused for 2.5 hours to preserve battery.
• Dimensions: 197.1mm(L) x 152.7mm(W) x 138.9mm(H)
• Weight:
  • On Land (only housing & body cap): Approx. 1385.2 g
  • Underwater: Approx. -130.0 g

Lens Port & Zoom Gear

This housing is compatible with the AX Port System. Zoom gear support includes the SONY FE 28-60mm F4–5.6 Lens (AOI LG-SEL-2860). Lens ports and zoom gears are sold separately.

Construction

Made from a durable blend of PC and GF (polycarbonate and glass fiber), this housing offers a lightweight yet rugged design to withstand underwater environments. Available in White (AOI UH-A7CII-WHT) and Black (AOI UH-A7CII-BLK).

Leak Detection & Vacuum System

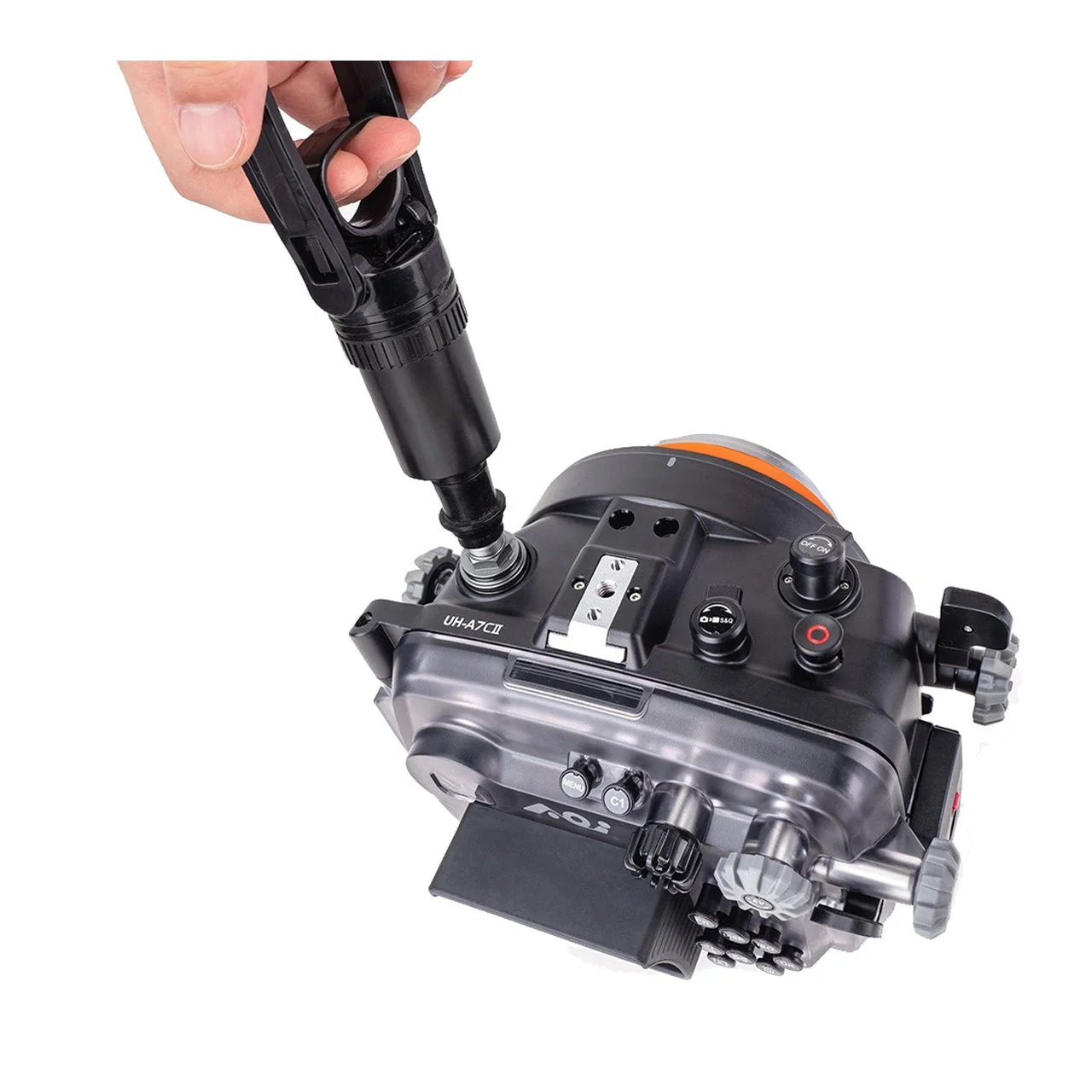

Equipped with AOI’s VWS system, this housing provides reliable pre-dive vacuum testing and moisture detection. A vacuum hand pump and spare O-rings are included to support ongoing leak prevention.

Compatibility

Designed specifically for the SONY ILCE-7CII and SONY ILCE-7CR cameras. Not compatible with other models or with attached battery grips or accessories.

In the Box

• AOI UH-A7CII Housing (White or Black)
• Zoom Gear for SONY FE 28-60mm F4–5.6 Lens (AOI LG-SEL-2860)
• Body Cap for AX Mount Housing (AOI BC-101)
• Hot Shoe Connector (AOI HSC-03)
• Camera Lens Release Attachment
• Spare Main Seal O-ring (AOI ORG-08)
• USB Type-C Charging Cable (AOI USBC-02)
• Spare Secondary Seal Ring (AOI SSR-06)
• Spare O-ring for Vacuum Valve Protection Cap (AOI SRVV-01)
• O-ring Remover (AOI ORR-02)
• LCD Hood (AOI LCDH-01)
• Vacuum Hand Pump (AOI VP-03)
• Extended Shutter Release Lever (AOI LYD-01)
• Silicone Grease (AOI SIGR-5)
• Silica Gel (AOI SIGE-3)
• Micro-Fiber Cleaning Cloth (AOI MCL-01)
